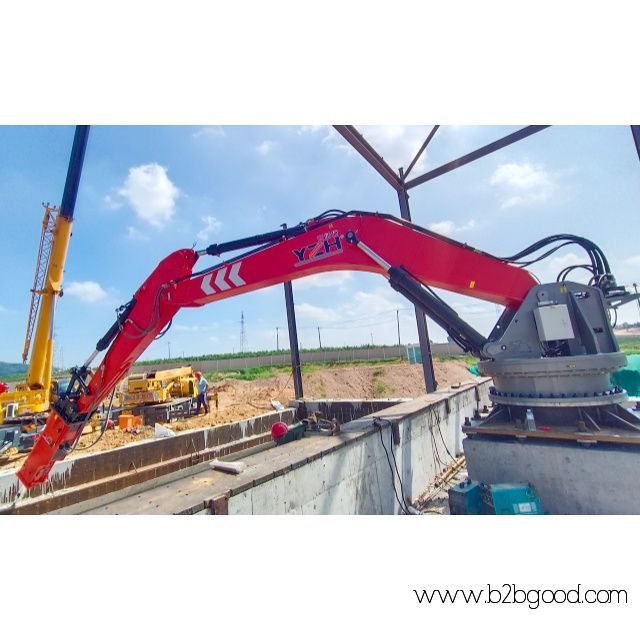

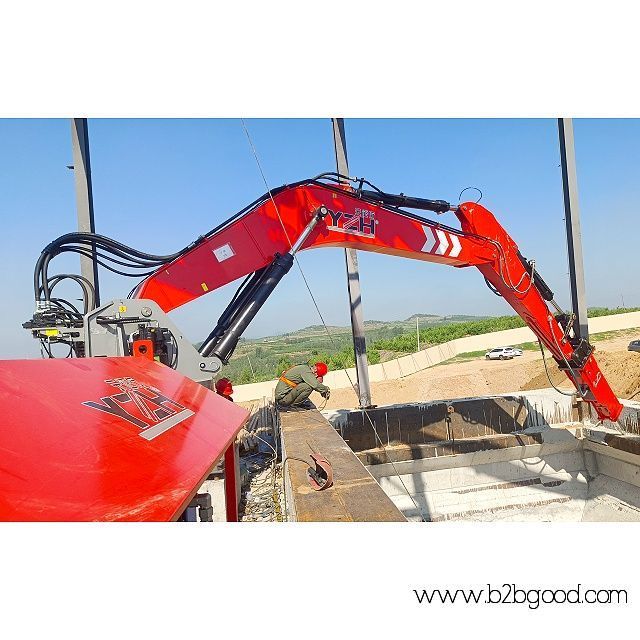

YZH Electric Multi-functional Hydraulic Rockbreaker Boom System is a complete electric-driven crushing solution independently developed by YZH. Integrating boom assembly, hydraulic breaker, electric power station and intelligent control system, this equipment is specially engineered for rock blockage clearing, secondary rock breaking and material demolition in mines, quarries, aggregate yards, metallurgical foundries, cement plants and construction sites.
Compared with diesel-powered counterparts, the electric rockbreaker boom features low noise, low energy consumption and zero on-site exhaust emission. It effectively upgrades operational safety, boosts productivity and profitability, and optimizes working environments under heavy-duty and harsh conditions, supporting the development of green and intelligent mines.
Main parameters
|
Model No. |
|
WHC860 |
|
Boom Weight (without hammer) |
kg |
7498 |
|
Max. Horizontal working radius |
mm |
11000 |
|
Max. Vertical working radius |
mm |
8651 |
|
Min. Vertical working radius |
mm |
3000 |
|
Max. Height |
mm |
7034 |
|
Max. Working Depth |
mm |
7741 |
|
Rotation |
° |
360 |
|
Pedestal Size |
mm |
Φ1400 |
|
Hydraulic hammer model |
|
YZH1350/YZH1400 |
|
Power of Hydraulic Power Unit |
kw |
55/75/90 |
Core Advantages
· Electric hydraulic drive system, stable power output, high energy efficiency and low operating cost
· Integrated remote control & video monitoring. Operators can work away from high-risk zones to avoid hazards like flying stones
· High-strength welded boom structure with shock absorption devices, excellent impact resistance and fatigue resistance for long service life
· Customizable configurations. We tailor design and production according to customers’ actual working conditions to meet specific requirements
· One-stop professional after-sales service, fast technical support and stable spare parts supply
Application Scenarios
-
Open-pit & underground mines
-
Stone quarries and sand & aggregate processing plants
-
metallurgical and foundry workshops
-
Cement production plants
-
Construction and material recycling sites
Customization Service
YZH supports full OEM & ODM customization. We can adjust boom reach, breaking force, control mode, colour and other specifications to match your site conditions. Our experienced engineering team provides one-stop solutions from design, manufacturing to delivery.
