бренд :YZH
Boom weight(without hammer):3475kg
Max.Horizontal Working radius:7000mm
Max.Vertical Working radius:4950mm
запуск :1set
снабжение :50set
отправка товара :3 В течение дня
покупка сразу же

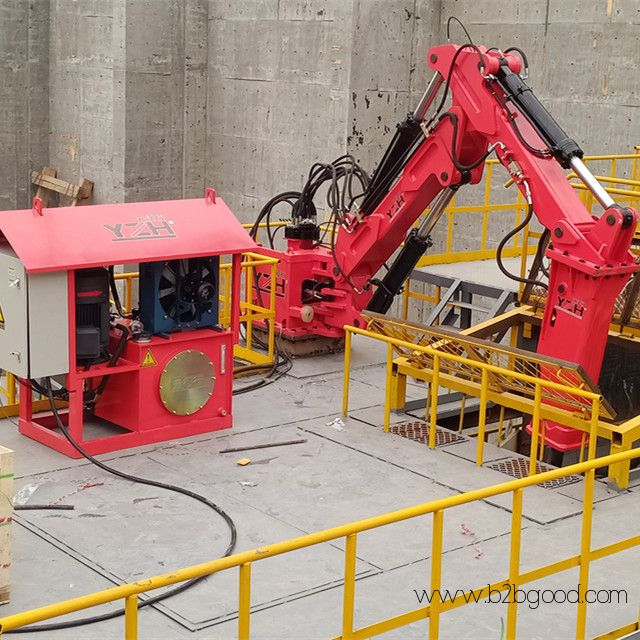

YZH stationary rock breaker boom is light-weight, multi-purpose breaker units typically used in quarries, next to primary crushers, to clear any blockages and bridging in stationary crushing plants as well as mobile crushers.
All fixed type hydraulic rock breaker boom systems include a positioning pedestal boom, hydraulic impact breaker, electric power unit, and operator controls. First use start up and commissioning, including operator and maintenance training, is part of the package.
Product Parameters
| Model No. | BB450 |
| Max. horizontal working radius(R1) | 7000mm |
| Max. vertical working radius(R2) | 4950mm |
| Min. vertical working radius(R3) | 2040mm |
| Max. working depth(H2) | 4890mm |
| Rotation | 170° |
