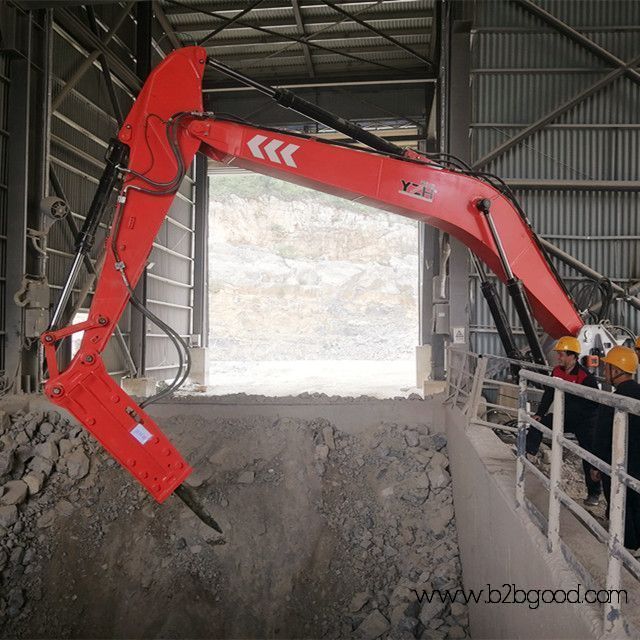

Shandong Yuanzhenghang Machinery Equipment Co., Ltd. has been plowing into the field of Fixed Rockbreaker Booms for more than 20 years, and its products are widely used in mining, metallurgy, sand and gravel aggregate and other industries with modular design, intelligent control and multi-scene adaptation as the core. The following is a detailed introduction from three aspects: technical characteristics, application scenarios, and user value:
Technical characteristics: industrial-grade performance and flexible design
1. Modularized architecture and high-strength materials
Modular components: the arm is composed of hydraulic pump station, rotary support system, multi-stage telescopic arm and other modules, which supports quick disassembly and function expansion, and is suitable for different working conditions.
Military-grade durability: High-carbon manganese steel welded frame, combined with cushion armor design, improves impact resistance by 60%-70%, and withstands extreme temperatures (-30℃ to 120℃) and corrosive environments.
2. Intelligent control and precise operation
Diversified control modes: support cab control, wireless remote control (up to 20km) and video monitoring linkage, equipped with millimeter-level positioning sensors to achieve precise crushing and material handling.
imported power system: Adopting German Rexroth hydraulic valve group and constant pressure variable pump, energy consumption is reduced by 50%-60% compared with traditional diesel equipment, and operation stability is significantly improved.
3. Multi-function expansion and customized service
Multi-functional: Through the ISO standard quick-change interface, it can quickly switch 12 kinds of attachments such as hydraulic breaker hammer, clamping bucket, electromagnetic suction cup, etc., covering a wide range of tasks such as crushing, digging and handling.
Flexible customization: arm length (1-20 meters), installation mode (ground fixed/rail mobile/suspended overhead) are designed according to the needs,suitable for narrow underground or open mine and other complex spaces.
Main parameter:
| Model No. | WHEN1510 | |
| Boom weight(without hammer) | kg | 17500 |
| Max.Horizontal Working radius | mm | 17250 |
| Max.vertical working radius | mm | 14640 |
| Min.vertical working radius | mm | 940 |
| Max.Height | mm | 9300 |
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
