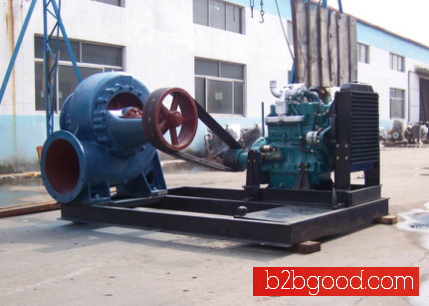

Model |
JHW400 |
||
|
Type |
Horizontal mixed flow pump |
||
|
Water inlet diameter |
400mm |
||
|
The outlet diameter |
400mm |
||
|
Capacity （Corresponding points） |
2300m3/h |
1880m3/h |
1480 m3/h |
|
Head（Corresponding points） |
13.6m |
18m |
20.7m |
|
Rotational Speed |
980rpm |
||
|
The pump casing material |
Cast iron |
||
|
The pump impeller material |
Brass |
||
|
The pump shaft material |
45# Steel |
||
|
Power |
106KW |
||
|
Connection with the engine |
V belt |
||
二、Engine parameters
|
Engine parmeters |
6BTAA5.9-G2(Cummins) |
|
Type |
Water-cooled in-line six cylinder Four stroke diesel engines |
|
The cylinder diameter(mm） |
105 |
|
Trip(mm） |
120 |
|
Cylinder |
6 |
|
Oil capacity (L） |
16 |
|
Fuel consumption（g/kw/h) |
205 |
|
Engine power（kW) |
132KW/1800RPM |
|
Adjust the way of speed |
Electronic |
|
Brand |
DCEC Cummins |
|
Cylinder capacity(L） |
5.9 |
三、The others
|
Fuel tank capacity |
100L |
|
Dimensions (L×W×H) (mm) |
2400×1900×1700 |
|
Net weight（kg） |
1800Kg |
|
The unit price(FOB) |
|
