العلامات التجارية:YZH
Boom Weight（without hammer）:16637 kg
Max.Horizontal Working radius:14150 mm
Max.Vertical Working radius:11784 mm
ترتيب:1set
تزويد:20set
تسليم:30في غضون أيام
اشتر الآن

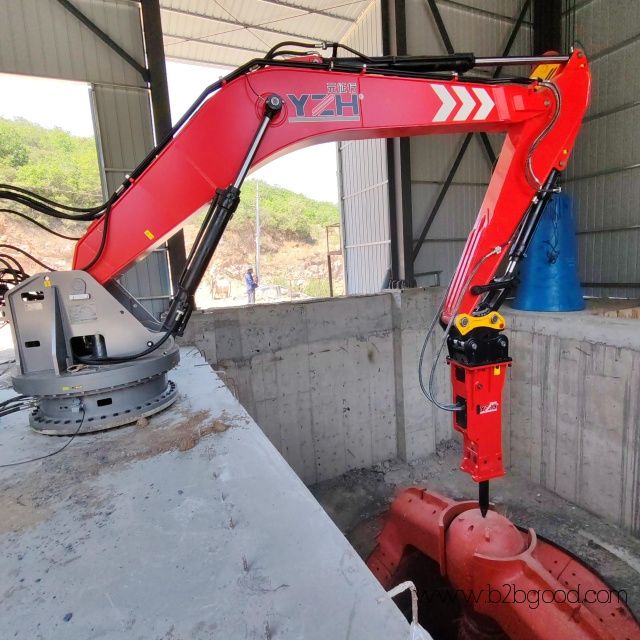

Main parameters of YZH WHEN1200 Stationary Pedestal Hydraulic Rockbreaker Boom System：
The Features of YZH WHEN1200 Stationary Pedestal Rockbreaker Boom：
Intelligent Multi-Mode Control: Supports cab operation, wireless/wired remote control, and fiber optic + 5G remote video monitoring with a control range of 10-20km. Paired with a high-performance controller. It enables precise positioning and flexible control, offering both wired and wireless dual-mode operation.
Robust and Durable Structure: Features high-strength rectangular steel boom beams, large-diameter cylinders, and reinforced pins. The slewing motor incorporates buffer braking. Equipped with a high-performance shock absorption system, core components utilize international brands, structural parts undergo strength verification and aging treatment, and welding processes are mature.
High Adaptability: Modular design allows interchangeable attachments like breakers and grabs. Suitable for open-pit/underground mining, metallurgy, cement, and other applications. Capable of long-term operation in harsh environments including corrosion, explosion-proof zones, and high altitudes. Wide horizontal working range with selectable rotation angles.
|
Model No. |
|
WHEN1200 |
|
Boom weight(without hammer) |
kg |
16637 |
|
Max.Horizontal Working radius |
mm |
14150 |
|
Max.vertical working radius |
mm |
11784 |
|
Min.vertical working radius |
mm |
2170 |
|
Max.Height |
mm |
8400 |
|
Max. Working Depth |
mm |
10295 |
|
Rotation |
° |
360 |
Intelligent Multi-Mode Control: Supports cab operation, wireless/wired remote control, and fiber optic + 5G remote video monitoring with a control range of 10-20km. Paired with a high-performance controller. It enables precise positioning and flexible control, offering both wired and wireless dual-mode operation.
Robust and Durable Structure: Features high-strength rectangular steel boom beams, large-diameter cylinders, and reinforced pins. The slewing motor incorporates buffer braking. Equipped with a high-performance shock absorption system, core components utilize international brands, structural parts undergo strength verification and aging treatment, and welding processes are mature.
High Adaptability: Modular design allows interchangeable attachments like breakers and grabs. Suitable for open-pit/underground mining, metallurgy, cement, and other applications. Capable of long-term operation in harsh environments including corrosion, explosion-proof zones, and high altitudes. Wide horizontal working range with selectable rotation angles.
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
