Plain weave -Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

Twill Weave -allows a thicker wire and is suitable for heavy meshes. The wire position of twill weave wire mesh is less stable compared with plain weave.

Dutch Plain Weave -similar to plain weave, while the warp wires are thicker and packed more closely together. This type of woven wire mesh is mainly used as industrial filter cloth.

Dutch Twill Weave -combination of dutch weave and twill weave. It is similar to twill weave, but the warp wires are thicker and packed more closely together. This type enables a strong wire cloth with super fine filtration. for fine filtration.

Five Heddle Weave -smooth top surface and an open lower surface. It is ideal to withstand high mechanical strain and excellent filter performance.

Reverse or Reinforced Dutch Weave -the same as dutch weave except the warp and weft wires are reversed. the weft wires are thicker than the warp wires. the opening of the two nearby orientated wires (warp wires or weft wires) at dutch weave is difficult to define.

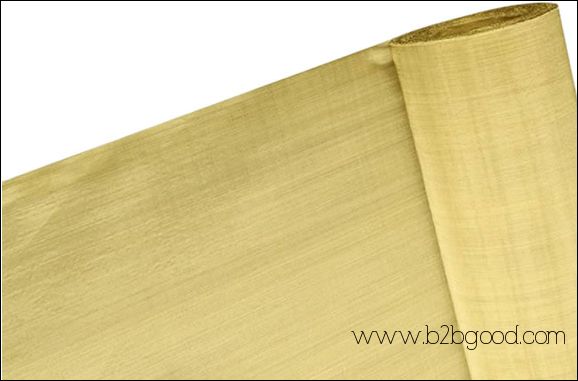

Plain Woven Copper Mesh

30x30 woven wire mesh screen, square hole fabric
